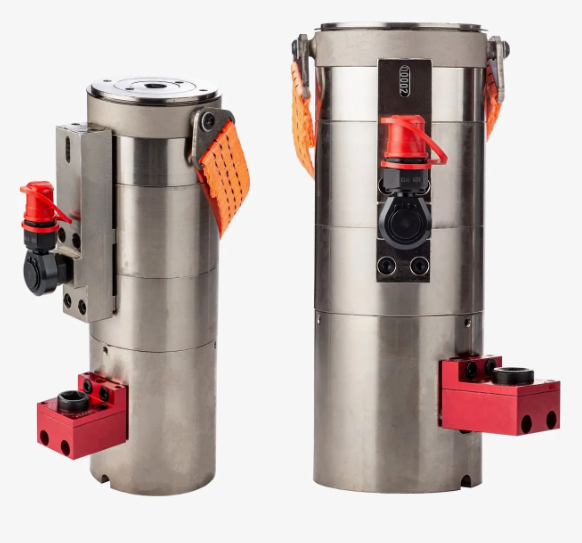

Hydraulic Bolt Tensioners-Type 2

Name: Jagadish Krishna
Email: jagadish@davincyindustrial.com
MS Teams: jagadish@davincy.onmicrosoft.com
Phone (China): +86 15251323641

Bolt Range: M30-M80Load Capacity: 465-3625NStroke: 8-10mmMax. Operating Pressure: 1500 bar

Weixin

Bolt size M	Tensile Force	A/F	D	D1	H	H1	H2
	KN	S(mm)	mm	mm	mm	mm	mm
M24×3	291	36	60	46	193	27	45
M27×3	380	41	66	54	200	29	50
M30×3.5	480	46	72	58.5	211	31	53
M33×3.5	580	50	79	63	227	34	58
M36×4	682	55	84	69	254	36	65
M39×4	820	60	91	75	259	40	69
M42×4.5	922	65	99	79	270	42	74
M45×4.5	1081	70	107	89	284	45	75
M48×5	1226	75	112	94.5	295	50	80
M52×5	1488	80	123	101	320	55	82
M56×5.5	1695	85	130	106.5	336	59	85
M60×5.5	2069	90	142	114.5	346	62	89
M64×6	2221	95	150	121	374	65	90
M68×6	2619	100	167	126	395	73	95
M72×6	2891	105	174	134	425	73	105
M80×6	3625	115	187	145	463	82	115
