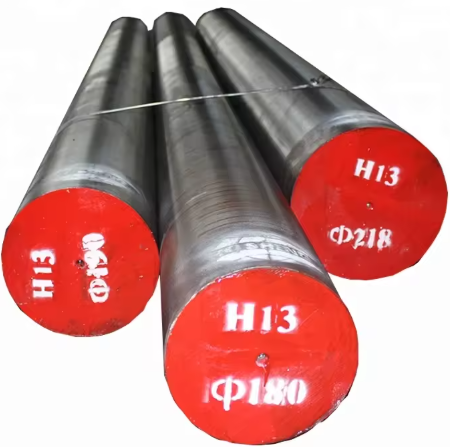

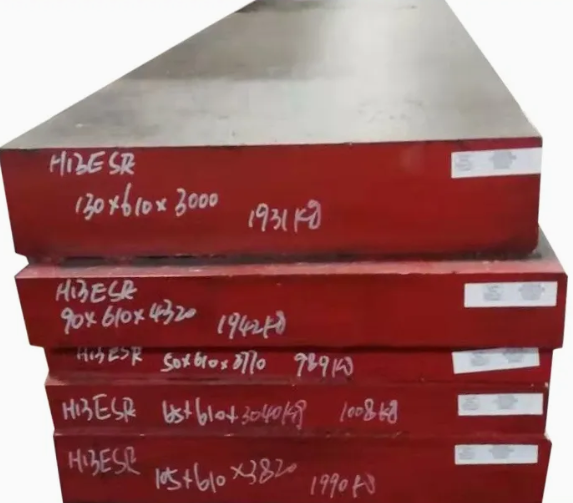

ASTM H13 Special Alloy Steel Plate

Name: Jagadish Krishna
Email: jagadish@davincyindustrial.com
MS Teams: jagadish@davincy.onmicrosoft.com
Phone (China): +86 15251323641

Application: Blanking Dies, Forming Dies, Coining Dies, Slitting Cutters

Weixin

standard	Grade	C	Si	Mn	P	S	Cr	Mo	V
ASTM A681	H13	0.32-0.45	0.8-1.2	0.20-0.50	0.03	0.03	4.75-5.50	1.1-1.75	0.8-1.2
DIN ISO 4957	1.2344	0.37-0.42	0.9-1.2	0.3-0.5	0.03	0.03	4.8-5.5	1.2-1.5	0.9-1.1
GB/T 1299	4Cr5MoSiV1	0.32-0.42	0.8-1.2	0.2-0.5	0.03	0.03	4.75-5.5	1.1-1.75	0.8-1.2
JIS G4404	SKD61	0.35-0.42	0.8-1.2	0.25-0.5	0.03	0.03	4.8-5.5	1-1.5	0.8-1.15

Tempering Tem. ºC	After quenched	200	400	500	520	550	580	600	650	700
Hardness HRC	56	54	54	55.5	54	52.5	49	45.5	33	28
Tensile Strength Mpa	-	-	2040	2100	2080	1980	1780	1650	1180	-
Reduction of area	-	-	40	34	40	48	53	54	55	-
Elongation %	-	-	11	11	11.5	12	12.5	14	18	-
Impact J	-	-	40	32	35	50	60	70	100	-
