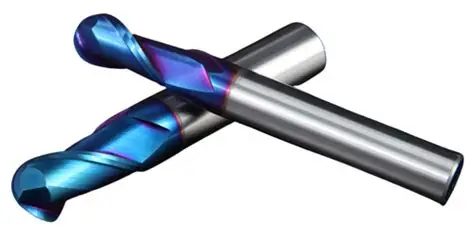

65 HRC BALL NOSE END MILL 4 Flute

Name: Jagadish Krishna
Email: jagadish@davincyindustrial.com
MS Teams: jagadish@davincy.onmicrosoft.com
Phone (China): +86 15251323641

4flutes, high rigidity, widely used in shallow slot, profile milling, and finish machining. helix angle is 35deg,high adaptability to material and hardness of workpieces, widely used to mold and product processing and cost efficient.

Weixin

Description

2/4 Flute-Standard Length in mm

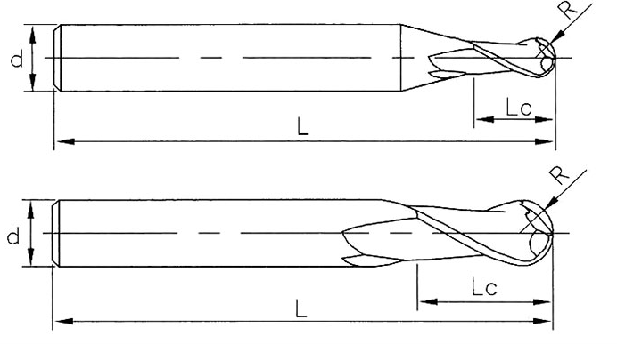

Endmill Radius	Cutting length	Shank Diameter	Overall Length
R	Lc	d	L
0.5	2	4	50
0.75	3	4	50
1	4	4	50
1.25	5	4	50
1.5	6	3	50
1.5	6	4	50
1.75	7	4	50
2	12	4	50
2.5	12	5	50
2.5	12	6	50
3	12	6	50
4	16	8	60
5	20	10	75
6	24	12	75
7	28	14	100
8	32	16	100
9	36	18	100
10	40	20	100

2/4 Flute- Extra Length in mm
Endmill Radius	Cutting length	Shank Diameter	Overall Length
R	Lc	d	L
1.5	6	3	mm
2	8	4	75
2.5	10	5	75
3	12	6	75
4	16	8	75
2	8	4	75
2.5	12	5	100
3	12	6	100
4	16	8	100
5	20	10	100
6	24	12	100
3	12	6	100
4	16	8	100
5	20	10	100
6	24	12	100
7	28	14	100
8	32	16	100
10	40	20	100
